Savi Lite Portable Deployment Kit
Rapidly deploy active RFID tracking solutions in remote and harsh locations. The Savi Lite Portable Deployment Kit, formerly known as the PDK II, provides a complete active RFID solution for real-time, end-to-end visibility of goods and critical assets moving through the supply chain at any location and in any environment.
PRECISE · DURABLE · AUTOMATED
Automate Capture and Management

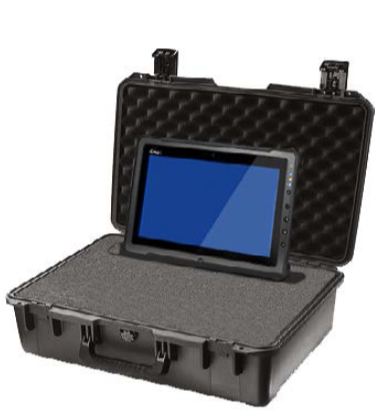

The Savi Lite Portable Deployment Kit includes a tablet PC, mobile reader, software and communications equipment needed for asset tracking, and cargo and personnel manifesting, in a self-contained, durable carrying case. The Lite PDK allows DoD Movement Control Teams (MCT) to quickly set up mobile operations, automating the collection, aggregation and deaggregation of cargo and passenger manifest data. The Lite PDK also enables active RFID tag read and write capabilities.
Easily Support Unique Requirements
The Lite PDK includes everything needed to perform the reading and writing of ISO-180007 compliant tags. Customers can also, optionally, load their own applications on the included tablet. A GPS unit captures the Lite PDK’s latitude and longitude coordinates. These coordinates and the tag data collected by the PDK are then communicated to a pre-installed Savi SmartChain® Workstation and forwarded to the RF-ITV Network via an Iridium Modem.
Savi Lite Portable Deployment Kit Specifications
| Model Number | |
|---|---|
| LITE-PDK1-RI001-001 | Lite Portable Deployment Kit |
| physical | |
| Dimensions | 21.20” x 16.00” x 8.30” (53.8 x 40.6 x 21.1cm) |
| Weight | 25lbs (11.34kg) |
| Case Material | Watertight, black w/ solid injection-molded plastic body, hinged lid |
| Packaging | NEMA 4; rugged, weatherproof packaging for indoor/outdoor use |
| Hardware Included | Rugged tablet, Modem w/ GPS and Antennas, Savi Mobile Reader |
| Software Included | Savi SmartChain® Workstation, pre-installed |
| environmental | |
| Temperature | -20 / 140°F (-29/60°C) |
| Humidity | 100% Condensing |
| Shock and Vibration | MIL-STD-810G |
| POWER | |
| Input DC Source | 12-30 VDC |
| Input DC Cable Length | 10 ft. (3 m) |
| Input DC Cable | NATO Connector (+24 Vdc Input); |
| Input AC | Cigarette Lighter Adapter (+12 Vdc) AC power supply w/ universal plug adapter kit |
| INTERFACES | |
| Internal System Data | RS-232 for Iridium Modem, Savi Mobile Reader |
| External System Data | Iridium Satellite Link to the RF-ITV Network; Iridium Modem equipped w/antennas and connectors; Savi Mobile Reader cable and USB connectors (supplied) |
| External DC Power Input | NATO and cigarette lighter adapters and power cable (included) 24V |
| External Power Supply | International power adaptors and power supplies |
| INDICATORS | |
| Iridium Signal Strength | NAL Corp. Iridium signal strength indicator |
| ACCESSORIES | |
| Subscriber Interface | SIM required for activation |
Key Features
- Enables fast, direct access to the RF-ITV
- Rechargeable batteries powered by military or civilian vehicles (DC or AC Power)
- Read range of up to 150 ft. (45.72m)
- Reads CAC cards
- Internet Protocol version 6 (IPv6) and ISO 18000-7 compatible
- Meets single-person lift requirements
Transit Case Features
- Two press & pull latches
- Two padlock-able hasps
- Altitude pressure relief Vortex® Valve
- Lightweight strong HPX® Resin
- Watertight
Tablet Features
- Large sunlight readable display
- 4th generation Intel Core Processor
- 802.11ac next generation WiFi
- RS232 Option installed
- Single USB port installed
- MIL-STD 810G and IP65 certified
- ANSI 12.12.01 non incen- dive certified
